Kartik Engineering Works

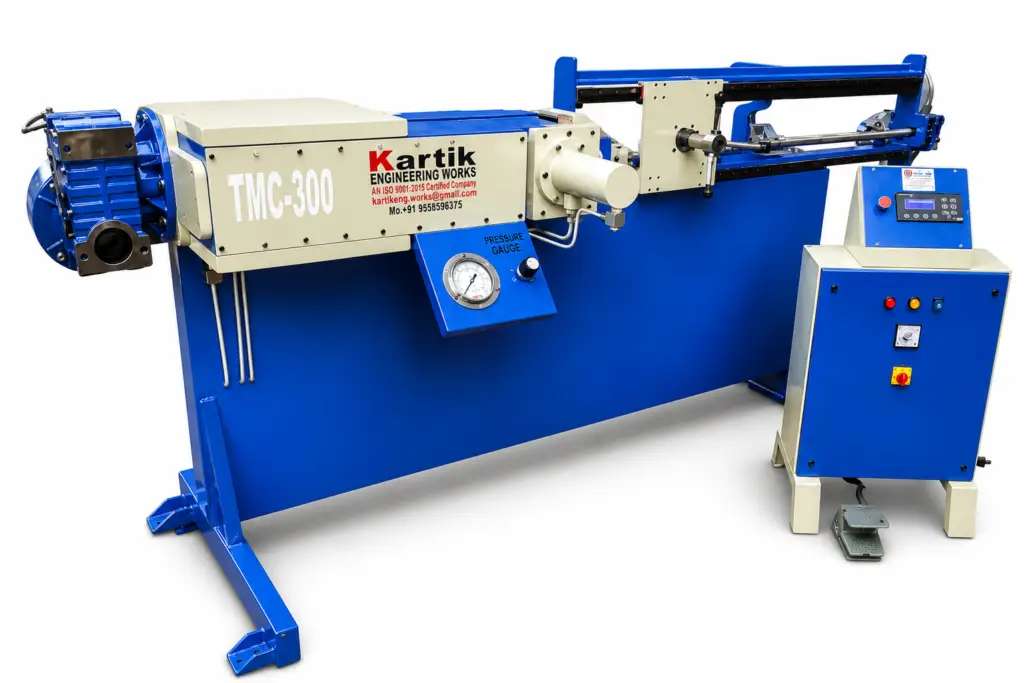

Tension Rolling Of Saw Blades Machine

Model: KEW-TMC300 | Precision Tensioning System

Advanced tension rolling machine engineered to apply precise, uniform tension to circular saw blades ranging from 200 mm to 2000 mm. Maximizes blade stability, prevents warping, and significantly extends operational life.

Total Power
5.3 kVA

Supply Voltage
3x400 V

Max Rolling Force
47 KN

Total Weight
1250 KG

📋 Technical Specifications

Parameter	Specification
Model	KEW-TMC300
Total Power Absorbed	5.3 kVA
Supply Voltage	3x400 V, 50/60 Hz
Power Consumption	3x7.6 A
Fuse Node	15-20
Rolling Diameter Range	Min 200 – Max 2000 mm
Max Rolling Force	47 KN
Rolling Speed	12 mm / Min
Dimensions (LxWxH)	3200 x 1100 x 1160 mm
Weight	1250 KG

* The technical details are subject to change without notice.

📘 Product Description

The Tension Rolling of Saw Blades Machine by Kartik Engineering Works is a specialized industrial equipment designed to apply precise and uniform tension to circular saw blades. This process is critical for maintaining optimal blade flatness, reducing vibration, and preventing deformation during high-speed cutting operations. By accurately adjusting the blade’s internal stress distribution, this machine ensures uniform strength across the entire blade surface, drastically enhancing cutting accuracy, efficiency, and overall tool longevity. Widely used in woodworking, metal fabrication, and sawmill industries, it is an indispensable tool for maintaining high-quality production standards and reducing blade replacement costs.

⚙️ Key Features & Benefits

High-Precision Rolling Force (Up to 47 KN) — Delivers accurate and repeatable tensioning pressure for consistent blade stress distribution across all diameters.
Versatile Diameter Accommodation (200–2000 mm) — Single machine capable of handling a broad spectrum of blade sizes, reducing the need for multiple equipment setups.
Heavy-Duty & Vibration-Free Build — Constructed with a robust steel frame weighing 1250 KG, ensuring exceptional stability and precision during the rolling process.
Controlled Rolling Speed (12 mm/Min) — Steady and uniform feed rate ensures optimal material flow and prevents micro-cracks or surface defects.
Energy-Efficient 3-Phase Operation — Optimized power consumption (5.3 kVA / 7.6A) provides high output while minimizing operational energy costs.
Enhanced Blade Longevity & Performance — Prevents blade warping, fatigue, and premature wear, ensuring cleaner cuts, longer tool life, and reduced downtime for blade replacements.
